參數規格

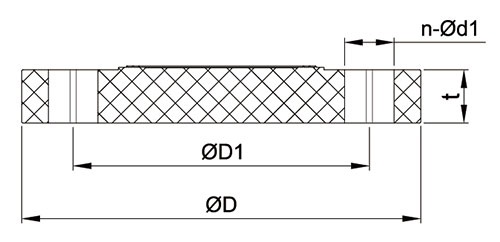

規格 | 外形尺寸 | |||
|---|---|---|---|---|
ΦD | ΦD1 | h | N-Φd1 | |
| 1／2″ | 95.0 | 62.8 | 16.0 | 4-Φ18.3 |
| 3／4″ | 105.0 | 72.5 | 16.0 | 4-Φ18.5 |
| 1″ | 115.0 | 82.3 | 19.0 | 4-Φ18.8 |
| 1—1／4″ | 140.0 | 94.5 | 19.0 | 4-Φ21.5 |
| 1—1／2″ | 150.0 | 104.3 | 20.0 | 4-Φ21.8 |
| 2″ | 165.0 | 122.8 | 22.0 | 4-Φ21.3 |
| 2—1／2″ | 185.0 | 142.5 | 24.0 | 4-Φ21.5 |
| 3″ | 200.0 | 156.3 | 30.0 | 8-Φ22.8 |
| 4″ | 220.0 | 185.3 | 30.0 | 8-Φ24.3 |
| 5″ | 250.0 | 213.0 | 32.0 | 8-Φ25.0 |
| 6″ | 285.0 | 240.8 | 33.0 | 8-Φ22.8 |
| 8″ | 340.0 | 296.5 | 33.0 | 8-Φ23.5 |
| 10″ | 415.0 | 362.0 | 35.0 | 12-Φ31.4 |
| 12″ | 483.0 | 432.0 | 42.0 | 12-Φ27.0 |
| 14″ | 533.0 | 476.0 | 45.0 | 12-Φ30.0 |
