參數規格

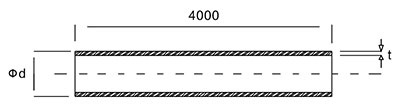

| 公稱尺寸Φd | 壁厚t mm | |||||
|---|---|---|---|---|---|---|
| UPVC | CPVC | |||||
| 給水 | 工業 | 工業 | ||||
| 1.0Mpa | 1.6Mpa | 1.0Mpa | 1.6Mpa | 1.0Mpa | 1.6Mpa | |
| Φ20 | 2.0 | 2.3 | 2.0 | 2.3 | ||
| Φ25 | 2.0 | 2.8 | 2.0 | 2.8 | ||
| Φ32 | 2.4 | 3.0 | 2.4 | 3.0 | ||
| Φ40 | 2.4 | 3.0 | 2.4 | 3.0 | 2.4 | 3.0 |
| Φ50 | 2.4 | 3.7 | 2.4 | 3.7 | 2.4 | 3.7 |
| Φ63 | 3.0 | 4.7 | 3.0 | 4.7 | 3.0 | 4.7 |
| Φ75 | 3.6 | 5.6 | 3.6 | 5.6 | 3.6 | 5.6 |
| Φ90 | 4.3 | 6.7 | 4.3 | 6.7 | 4.3 | 6.7 |
| Φ110 | 4.2 | 7.2 | 5.3 | 8.1 | 5.3 | 8.1 |
| Φ140 | 5.4 | 8.3 | 6.7 | 10.3 | 6.7 | 10.3 |
| Φ160 | 6.2 | 9.5 | 7.7 | 11.8 | 7.7 | 11.8 |
| Φ200 | 7.7 | 11.9 | 9.6 | 14.7 | 9.6 | 14.7 |
| Φ225 | 8.6 | 13.4 | 10.8 | 16.6 | 10.8 | 16.6 |
| Φ250 | 9.6 | 14.8 | 11.9 | 18.4 | 11.9 | 18.4 |
| Φ280 | 10.7 | 16.6 | 13.4 | 16.6 | 13.4 | 16.6 |
| Φ315 | 12.1 | 18.7 | 15.0 | 18.7 | 15.0 | 18.7 |
| Φ355 | 13.6 | 21.1 | 16.9 | 21.1 | 16.9 | 21.1 |
| Φ400 | 15.3 | 23.1 | 19.1 | 23.7 | 19.1 | 23.7 |
