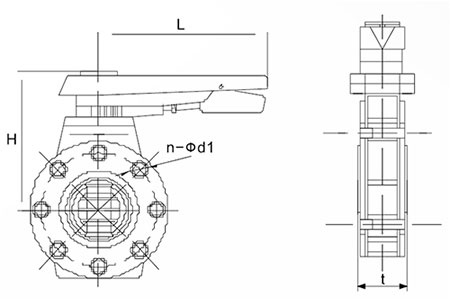

Parameter specifications
| Specification | Overall dimensions | |||
|---|---|---|---|---|
| L(mm) | H | t | n-Φd1 | |
| 2" | 200.0 | 160.0 | 43.0 | 4-Φ21.3 |
| 2-1/2" | 200.0 | 170.0 | 46.0 | 4-Φ21.5 |
| 3" | 240.0 | 195.0 | 49.0 | 8-Φ22.8 |
| 5" | 240.0 | 210.0 | 58.0 | 8-Φ24.3 |
| 4" | 304.0 | 245.0 | 64.0 | 8-Φ25.0 |
| 6" | 304.0 | 260.0 | 70.0 | 8-Φ22.8 |
| 8" | 304.0 | 310.0 | 88.0 | 8-Φ23.5 |
| 10" | 245.0 | 355.0 | 98.0 | 12-Φ31.4 |
| 12" | 245.0 | 400.0 | 108.0 | 12-Φ27.0 |
| 14" | 210.0 | 445.0 | 96.0 | 12-Φ30.0 |
