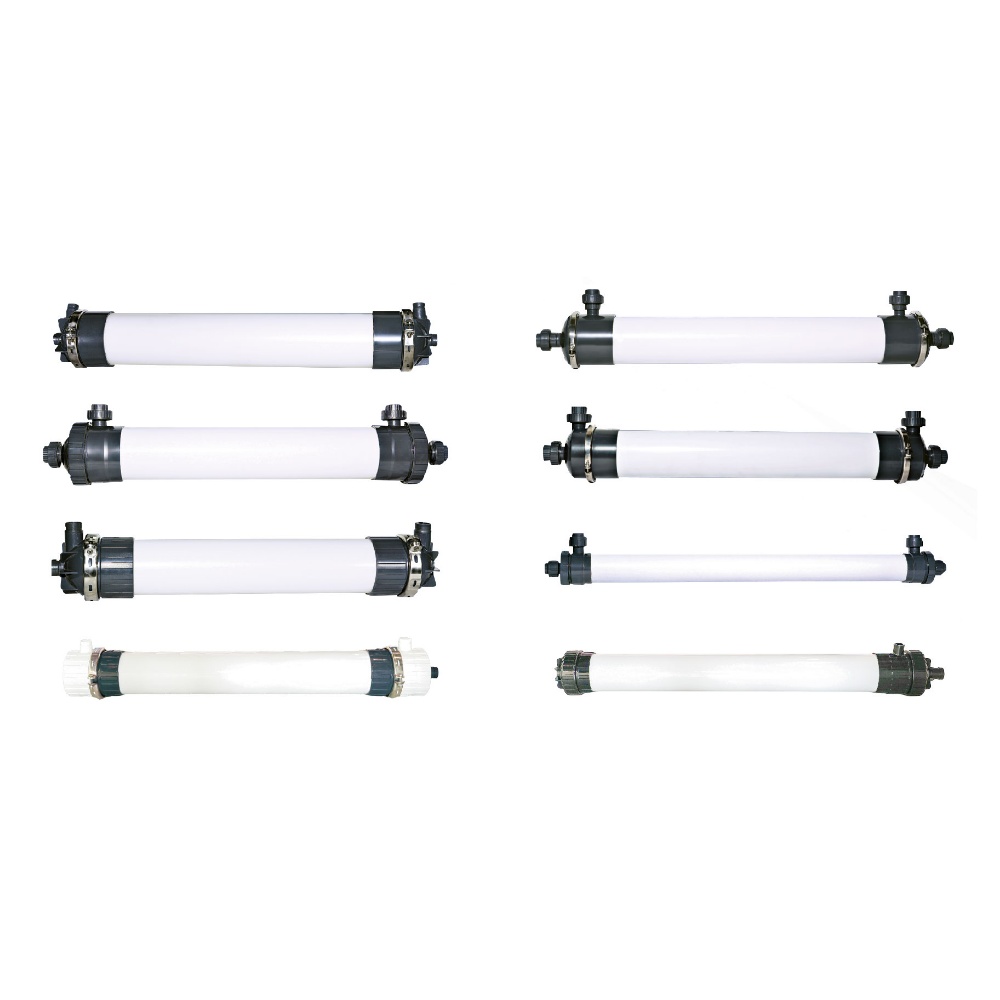

Ultrafiltration membrane shell

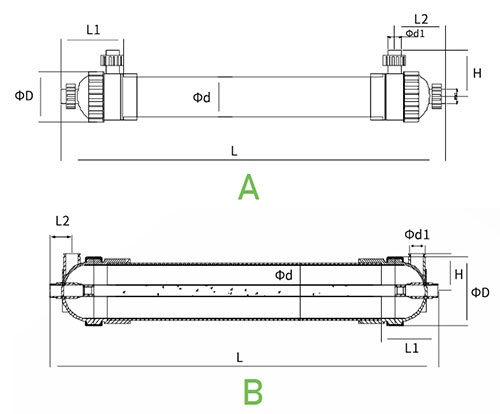

Structure diagram：

外貿-超濾膜殼-2

Material：

Specification	Overall dimensions
Specification	Φd	ΦD	L1(mm)	L2(mm)	H	Φd1	Φd1
2"-A	50.0	85.0	90.0	72.0	56.0	12.0	Hose Adaptor
4"-A	90.0	110.0	115.0	101.0	110.0	32.0	Union Inlet/Outlet
5"-A	140.0	160.0	165.0	140.0	170.0	32.0/40.0	Union Inlet/Outlet
6"-A	160.0	195.0	207.0	183.0	164.0	40.0	Union Inlet/Outlet
6"-B	160.0	195.0	176.0	112.0	158.0	40.0	Union Inlet/Outlet
6"-C	160.0	220.0	274.0	214.0	170.0	40.0/50.0	Union Inlet/Outlet
8"-A-1	200.0	240.0	243.0	208.0	187.0	50.0	Union Inlet/Outlet
8"-A-2	200.0	230.0	243.0	280.0	187.0	50.0	Union Inlet/Outlet
8"-A-3	200.0	245.0	236.0	190.0	145.0	60.0	Coupling Inlet/Outlet
8"-B	200.0	235.0	175.0	73.0	158.0	50.0	Coupling or Union Inlet/Outlet
9"-B-1	225.0	280.0	236.0	73.0	180.0	50.0	Coupling Inlet/Outlet
9"-B-2	225.0	251.0	177.0	67.0	160.5	60.0	Coupling Inlet/Outlet
9"-B-3	225.0	273.0	236.0	136.0	180.0	50.0	Coupling Inlet/Outlet
10"-B	250.0	280.0	173.0	73.0	172.0	50.0	Coupling or Union Inlet/Outlet
12"-A	315.0	360.0	208.0	263.0	224.0	75.0	Coupling Inlet/Outlet
