Parameter specifications

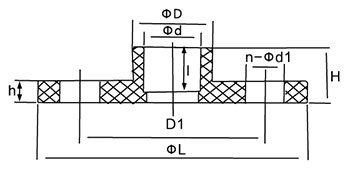

| Nominal size Φd | ΦD | I | ΦL | D1 | H | h | n - Φd1 |
|---|---|---|---|---|---|---|---|
| Φ20 | 27 | 16 | 95 | 65 | 19 | 12 | 4 - Φ14 |
| Φ25 | 33 | 19 | 105 | 75 | 22 | 14 | 4 - Φ14 |
| Φ32 | 41 | 22 | 115 | 85 | 25 | 14 | 4 - Φ14 |
| Φ40 | 50 | 26 | 140 | 100 | 30 | 14 | 4 - Φ18 |
| Φ50 | 61 | 31 | 150 | 110 | 35 | 16 | 4 - Φ18 |
| Φ63 | 76 | 38 | 165 | 125 | 42 | 16 | 4 - Φ18 |
| Φ75 | 90 | 44 | 185 | 145 | 48 | 16 | 4 - Φ18 |
| Φ90 | 108 | 51 | 200 | 160 | 56 | 18 | 8 - Φ18 |
| Φ110 | 131 | 61 | 220 | 180 | 66 | 19 | 8 - Φ18 |
| Φ140 | 161 | 94 | 250 | 210 | 101 | 30 | 8 - Φ18 |
| Φ160 | 184 | 107 | 285 | 240 | 113 | 30 | 8 - Φ22 |
| Φ225 | 254 | 116 | 340 | 295 | 126 | 45 | 8 - Φ22 |
